Comprehensive Review MSI MPG Z890 EDGE TI WIFI Pairing with Core Ultra 7 265K

he popularity of white PCs is finally rising, with numerous white components being announced and released, including new chipset motherboards and video cards with the latest GPUs. Today, we introduce the “MSI MPG Z890 EDGE TI WIFI,” which is perfect for those seeking a high-end configuration with a white gaming PC.

Whiteness is enhanced by a white substrate > Premium specifications for high-performance white PCs

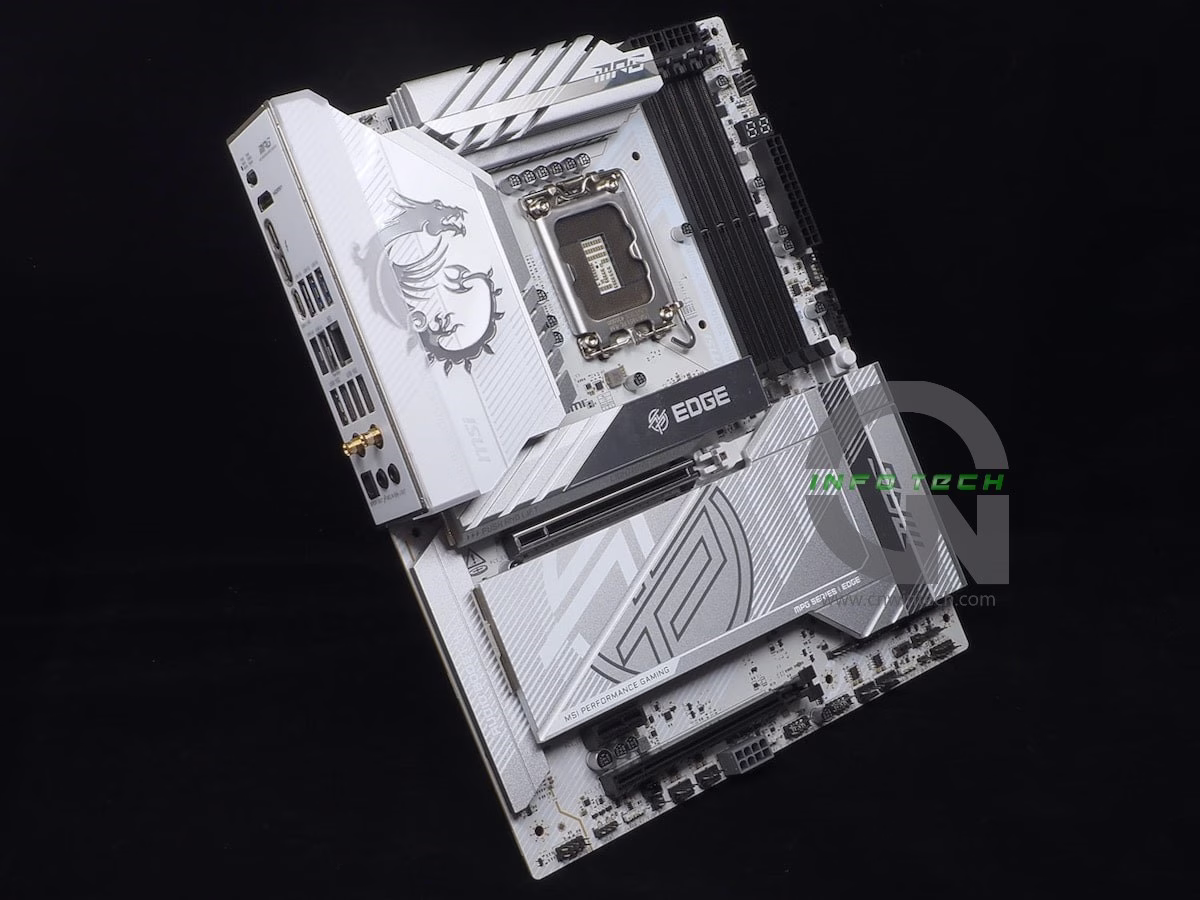

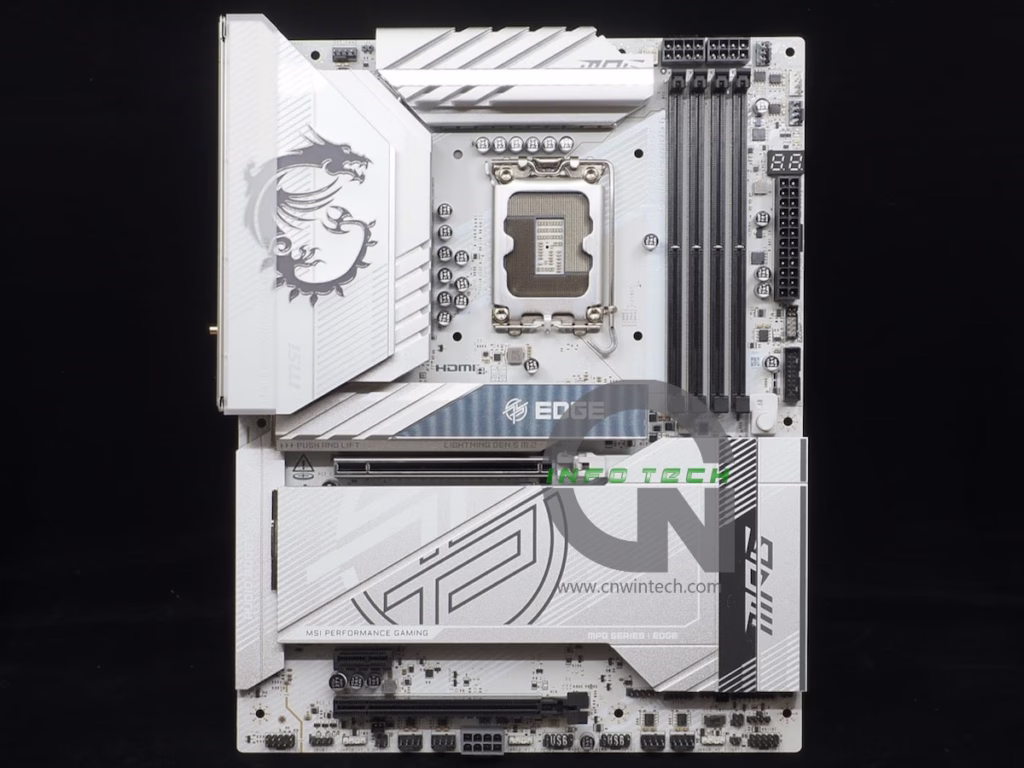

Regarding the “EDGE” on MSI motherboards, it is white. Specifically, until the previous generation Intel Z790, it was silver or black. However, but in the Intel Z890 generation “MSI MPG Z890 EDGE TI WIFI”, the black board used previously has been changed to a white board, and the colour scheme is white/silver. Except for details such as power terminals, expansion slots, and various headers, it appears almost entirely white. Additionally, the button of the video card release mechanism “EZ PCIe Release” adopted in this generation has also been whitened. I can imagine that this is a product that incurs significant costs.

The heatsink and slot layout of the MSI MPG Z890 EDGE TI WIFI closely resemble those of the “MSI MPG Z890 EDGE TI WIFI,” which is a black model of the same MPG grade. Notably, heatsink to differ mainly in color, with silver for the former and black for the latter.

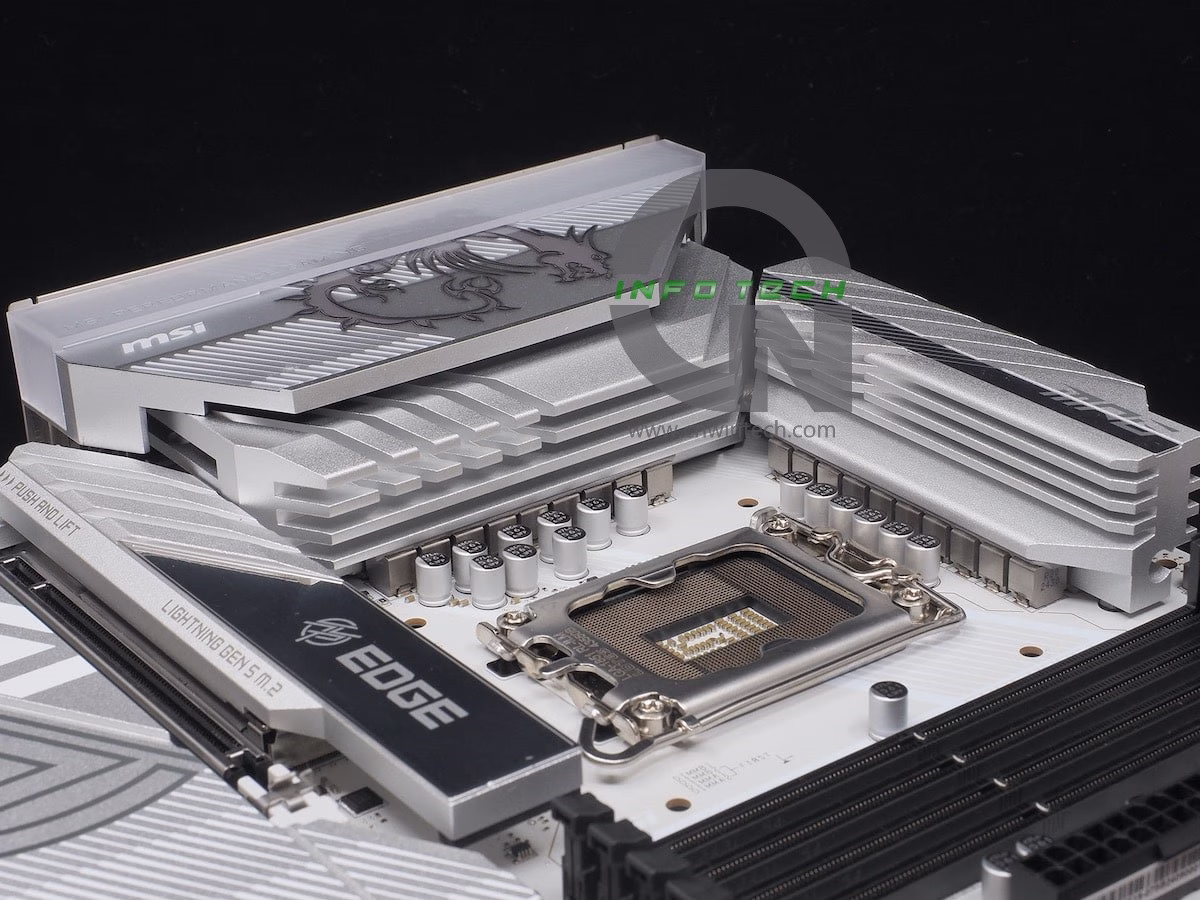

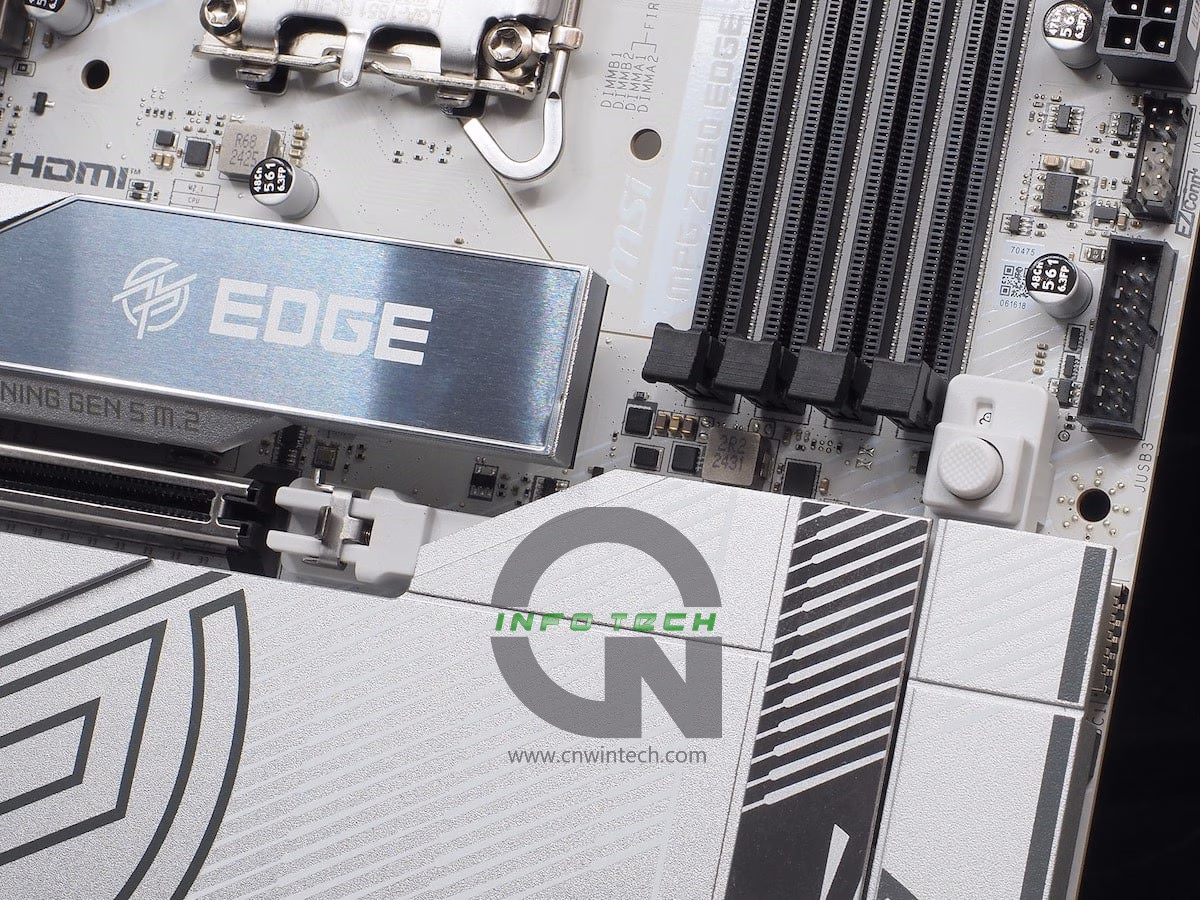

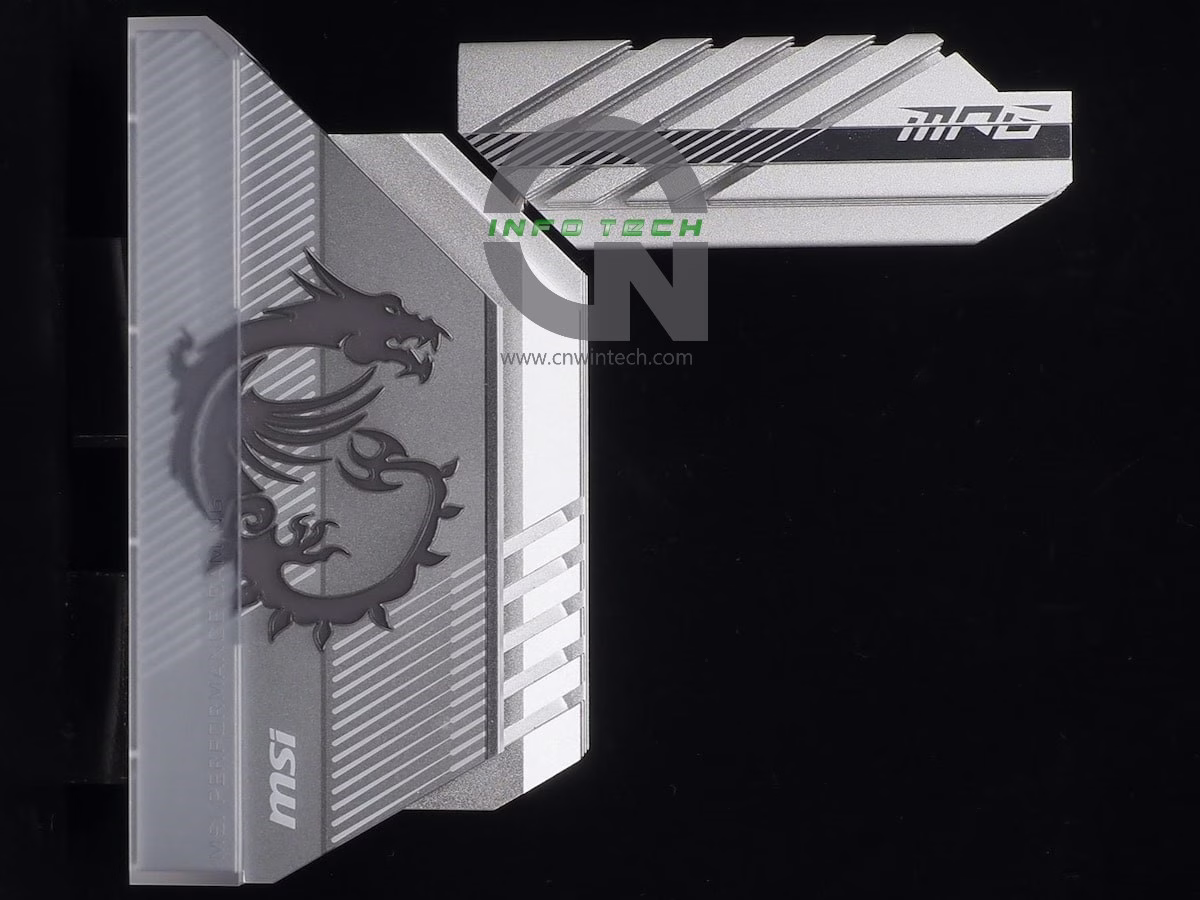

The VRM heatsink is substantial, and the left and top sections of the CPU socket connected by heat pipes, incorporating a design typical high-end models to evenly distribute heat. The M.2 heatsink, on the other hand, is designed for high-performance M.2 drives, featuring a large, flat area. Moreover, the M.2 heatsink employs EZ M. Shield Frozr II and EZ M.2 CLIP specifications allowing for tool-less SSD installation. There are a total of five M.2 slots.

The expansion slots are 5.0 x16, 4.0 x1, and 4.0 x4 (x16 shape) in order from CPU socket to the front. The wide spacing between the first and second slots allows for the use of high-end to upper-middle-class video cards without any issues related to thickness or length. The second slot is also practically available, accommodating a combination of a video card, capture card, and audio card.

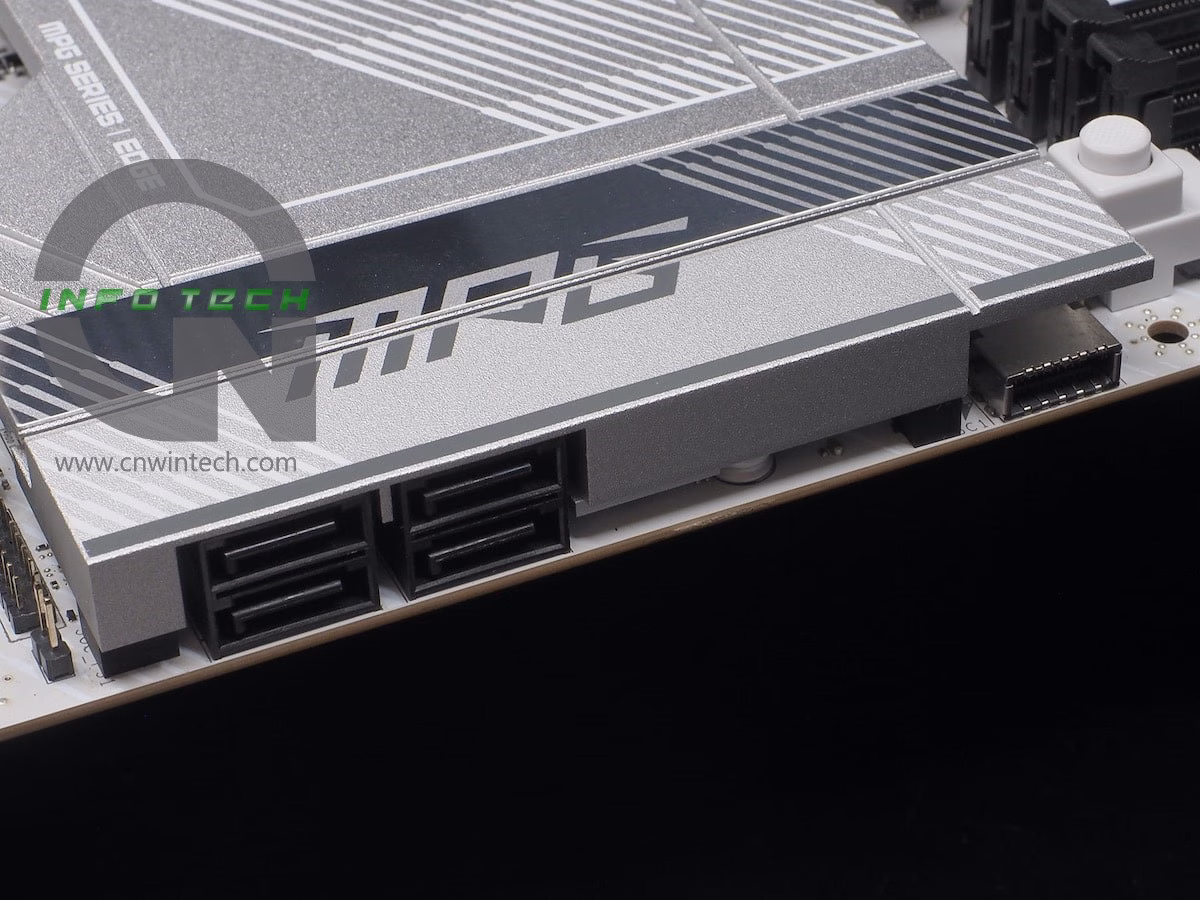

Serial ATA features four ports in a landscape layout, with the large M.2 heatsink obscuring the black portion of the terminals. Introducing a separate white Serial ATA cable would add to the clutter.

The back panel is relatively simple, but it features a Flash BIOS and a Clear BIOS button. For high-speed USB connectivity, it includes two Thunderbolt 4 ports, as well as ample USB 10Gbps ports with one Type-C port and four Type-A ports. The wired LAN supports 5GbE, while the wireless LAN is equipped with Wi-Fi 7 (Intel Killer BE1750x) that supports the full 320MHz specification, offering high-speed performance.

Adjust the Costly of High-end and White Effectively

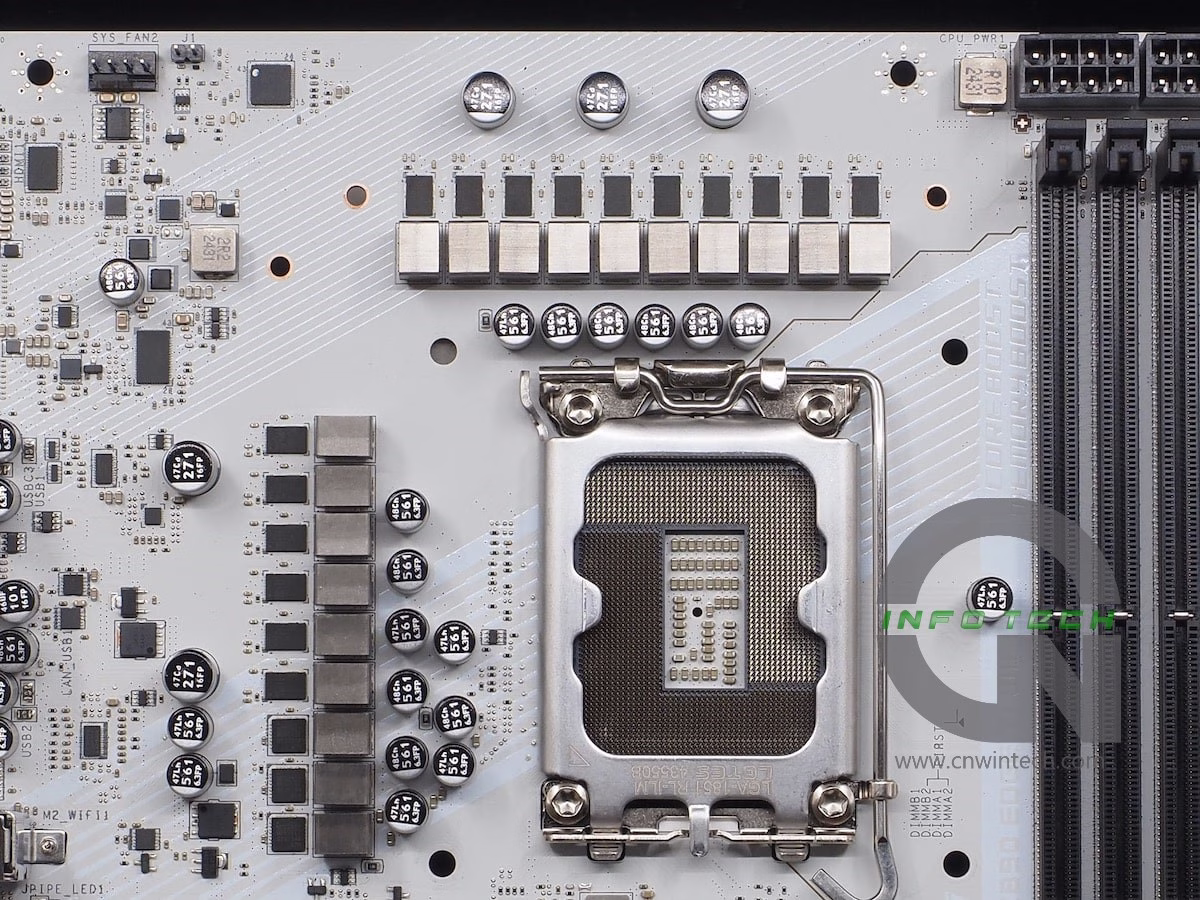

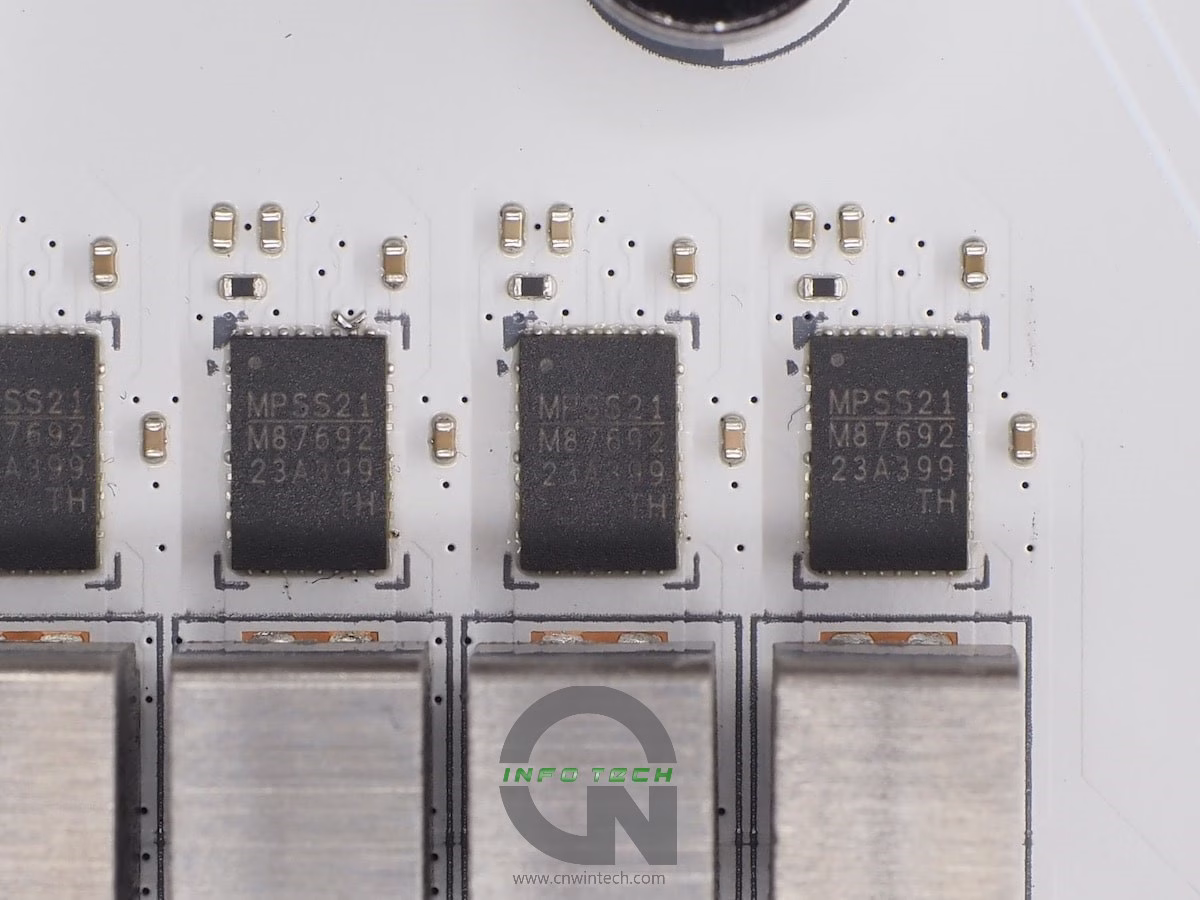

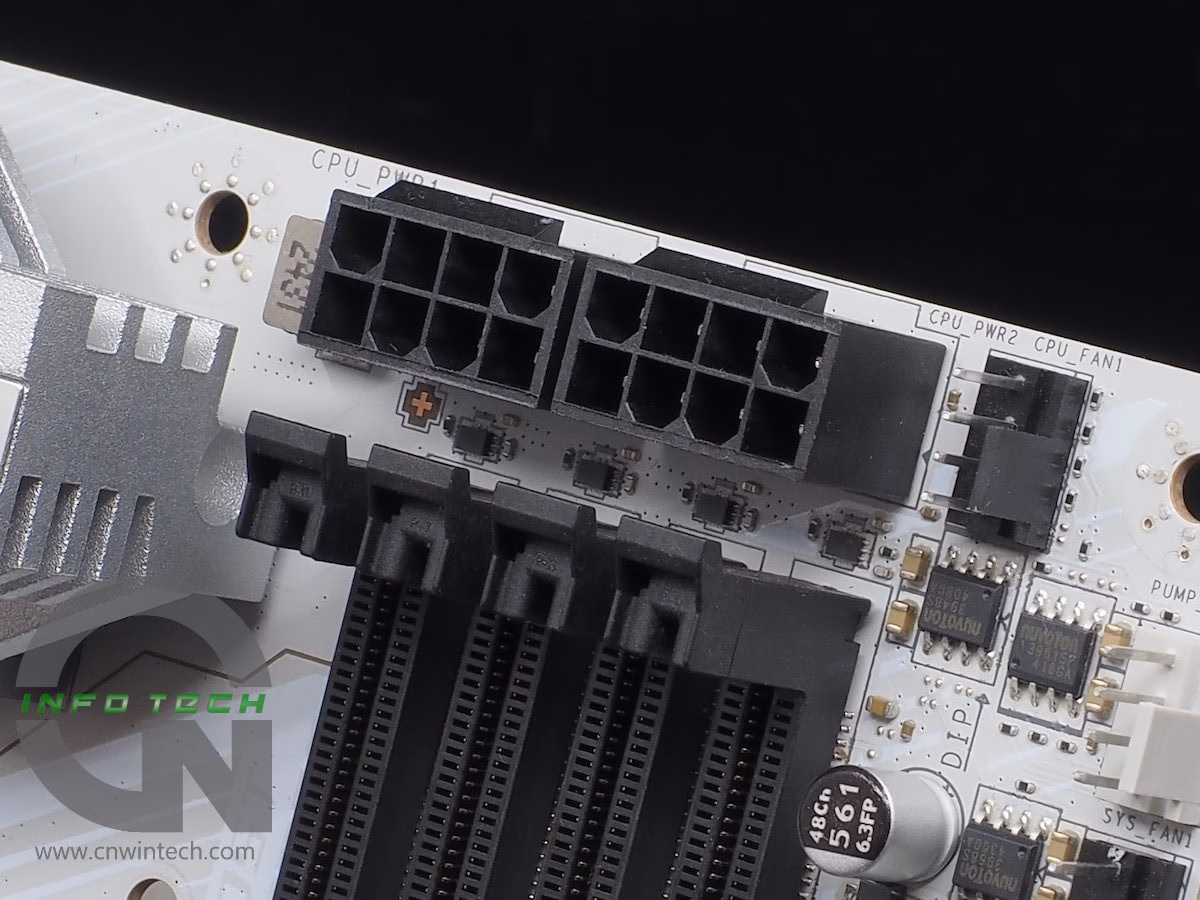

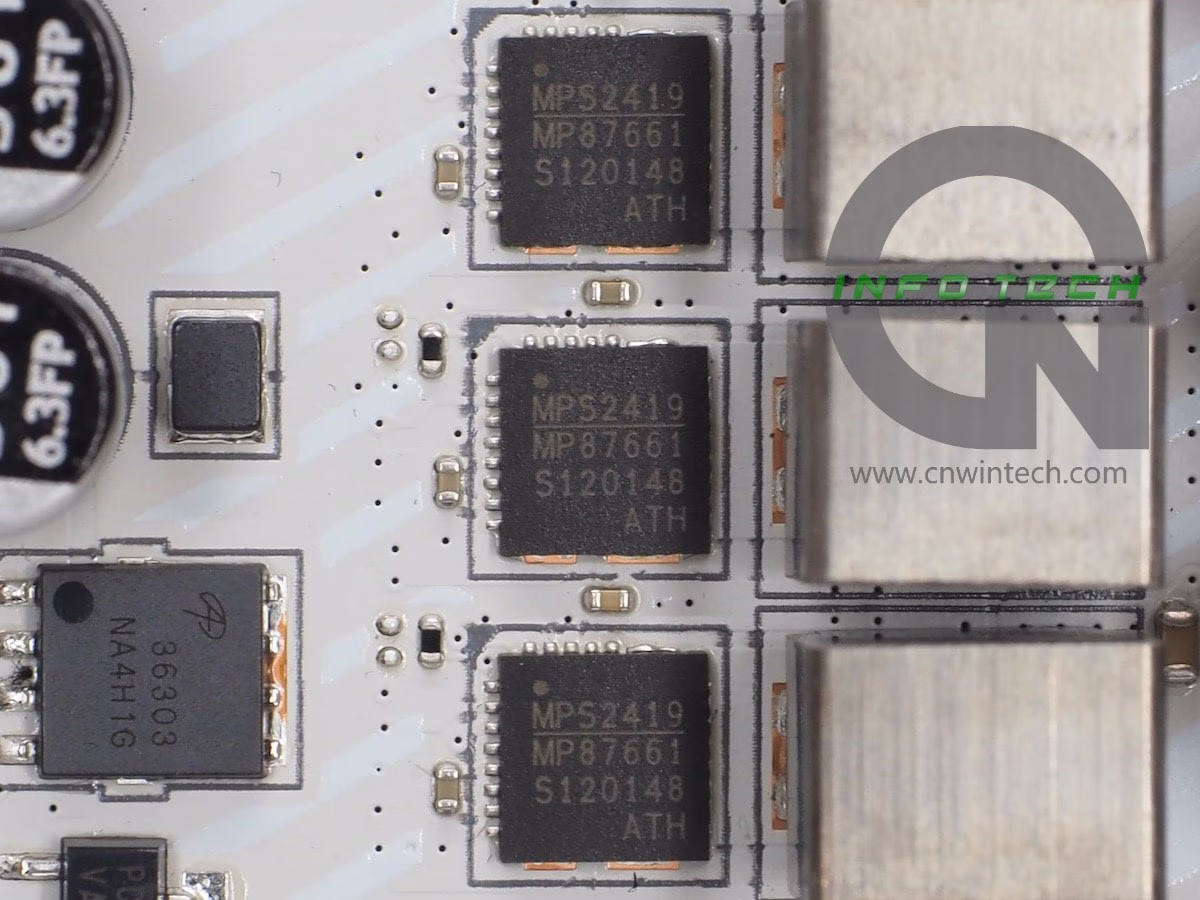

The CPU power supply circuit is configured as 16 + 1 + 1 + 1 phase. The MOSFET used in the main 16-phase section is a 90A compatible SPS. Compared to the higher-end MSI MPG Z890 EDGE TI WIFI, the number phases and SPS output are slightly, but MSI MPG Z890 EDGE TI WIFI the specifications are still generous enough for a high-end model. Additionally at the chip level, the same number of phases are of higher quality than the mainstream MAG grade models.

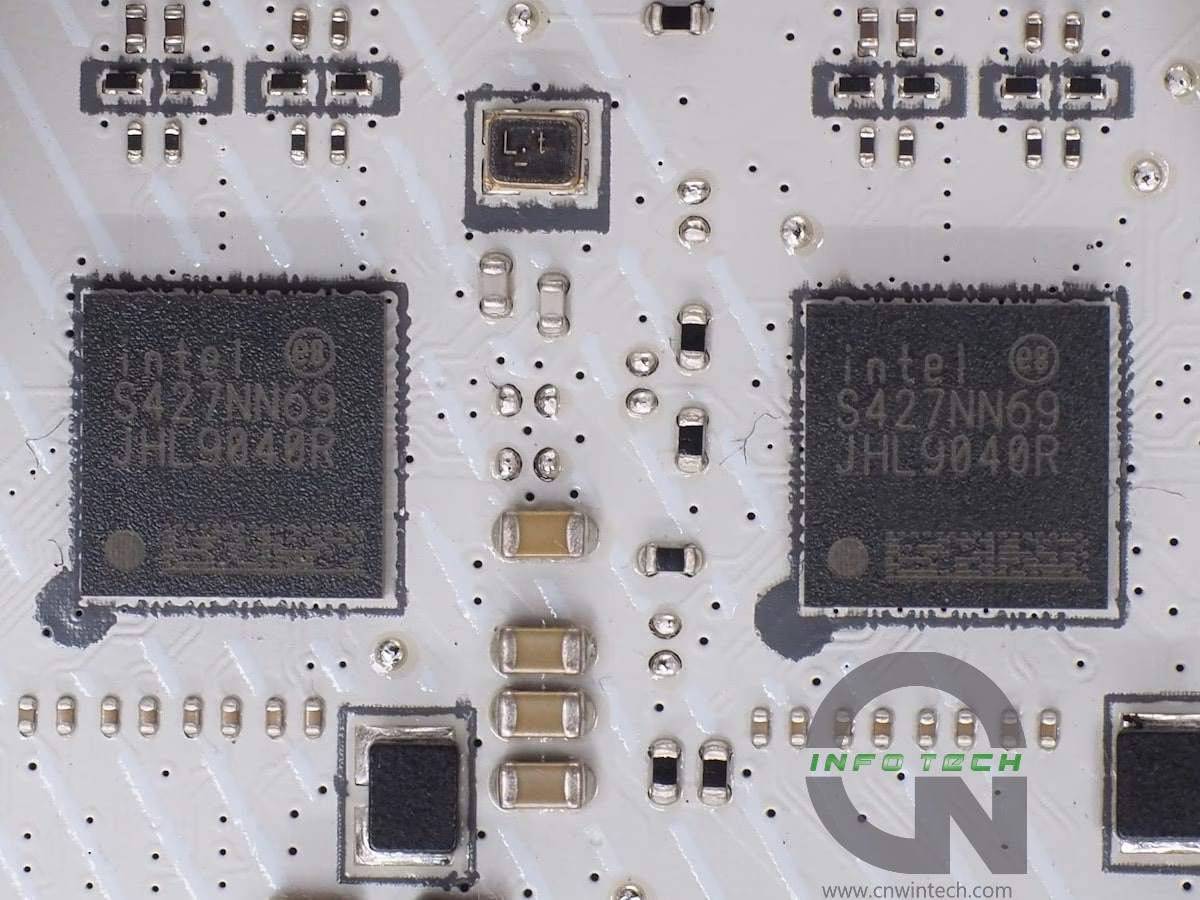

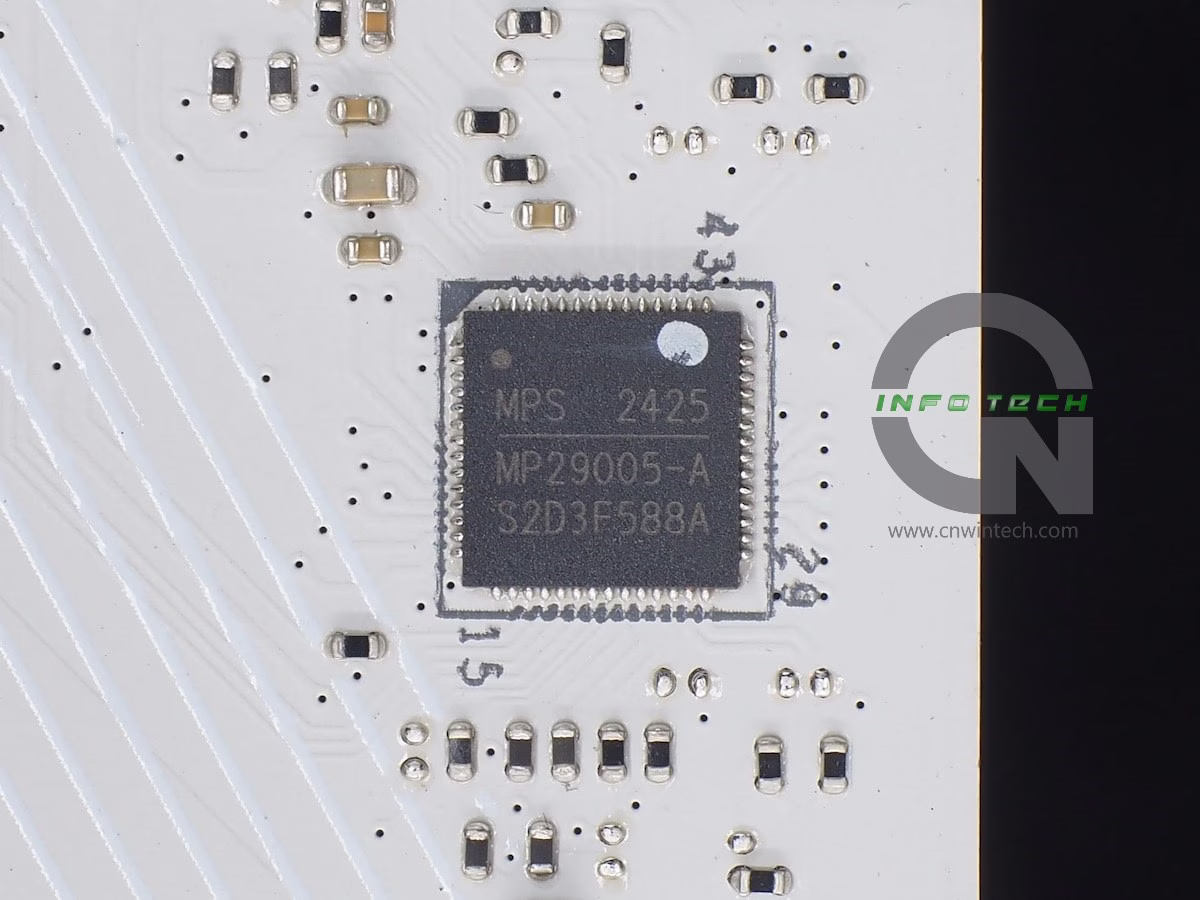

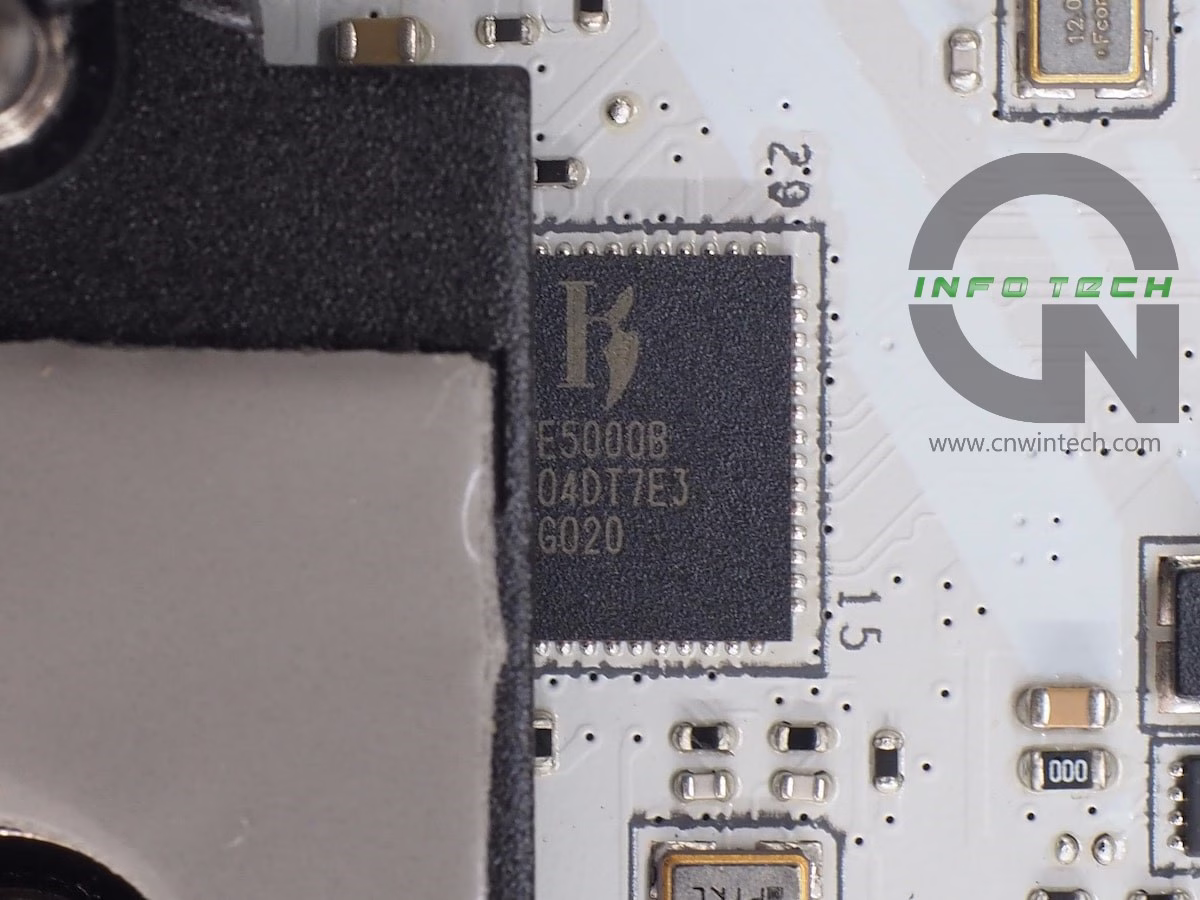

Examining other mounting chips, one can observe two Intel “JHL9040R” (Hayden Bridge) Thunderbolt 4 (retimer) and Intel Killer E5000B for 5E.

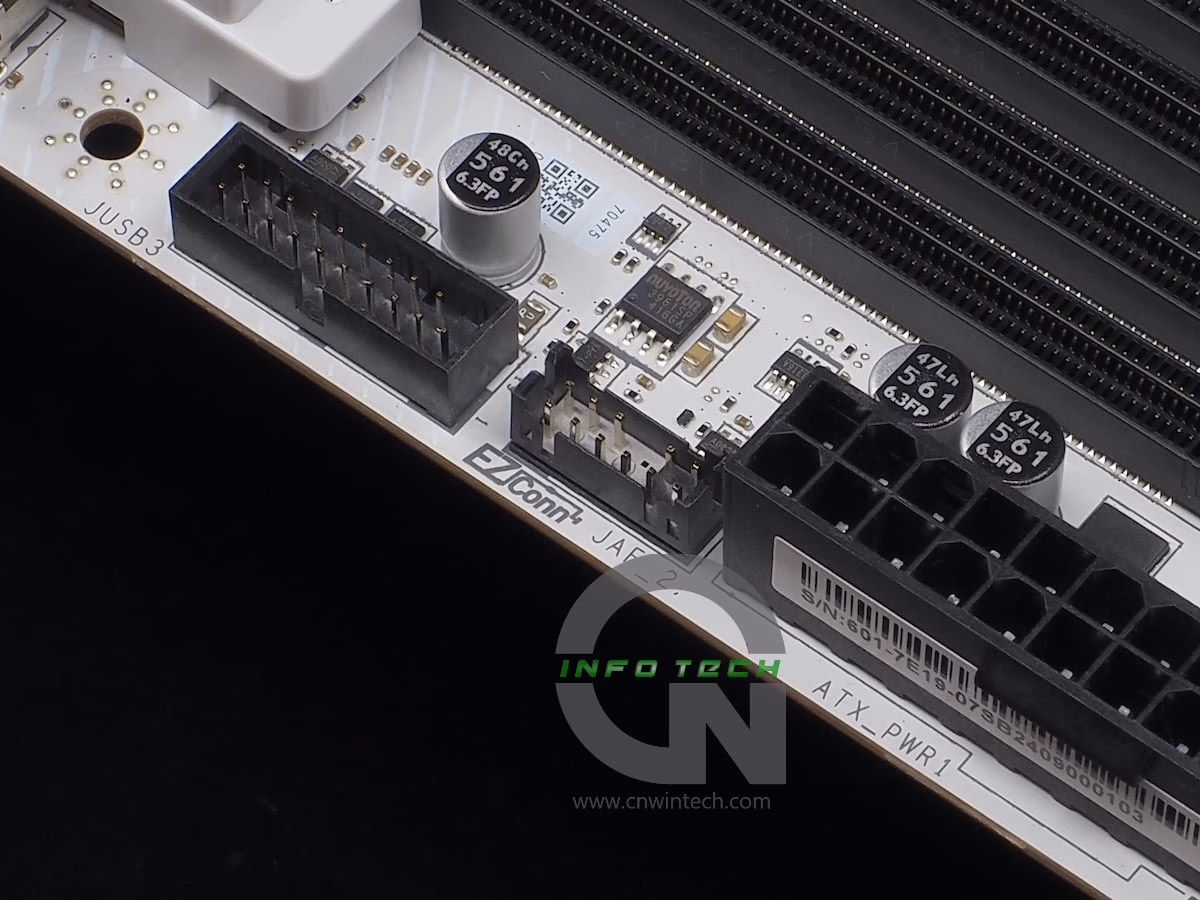

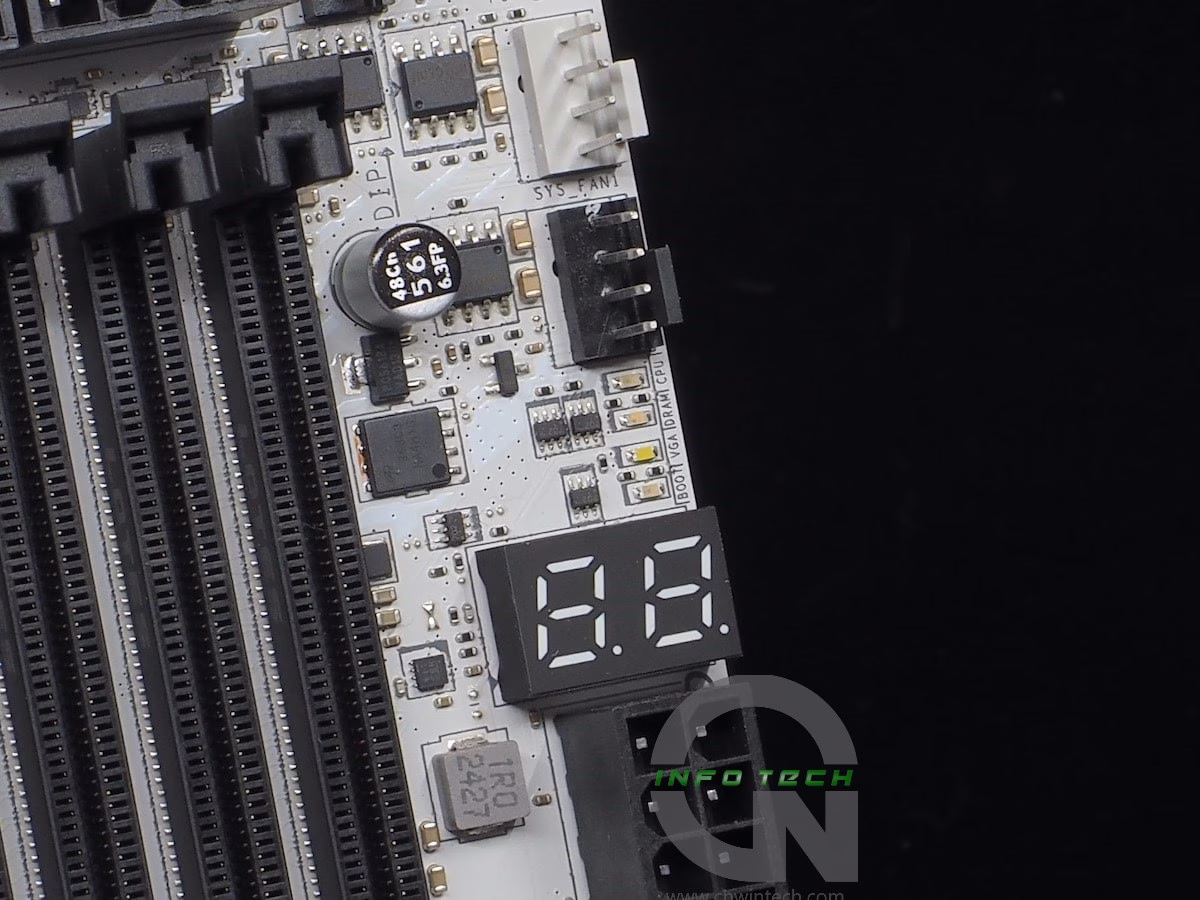

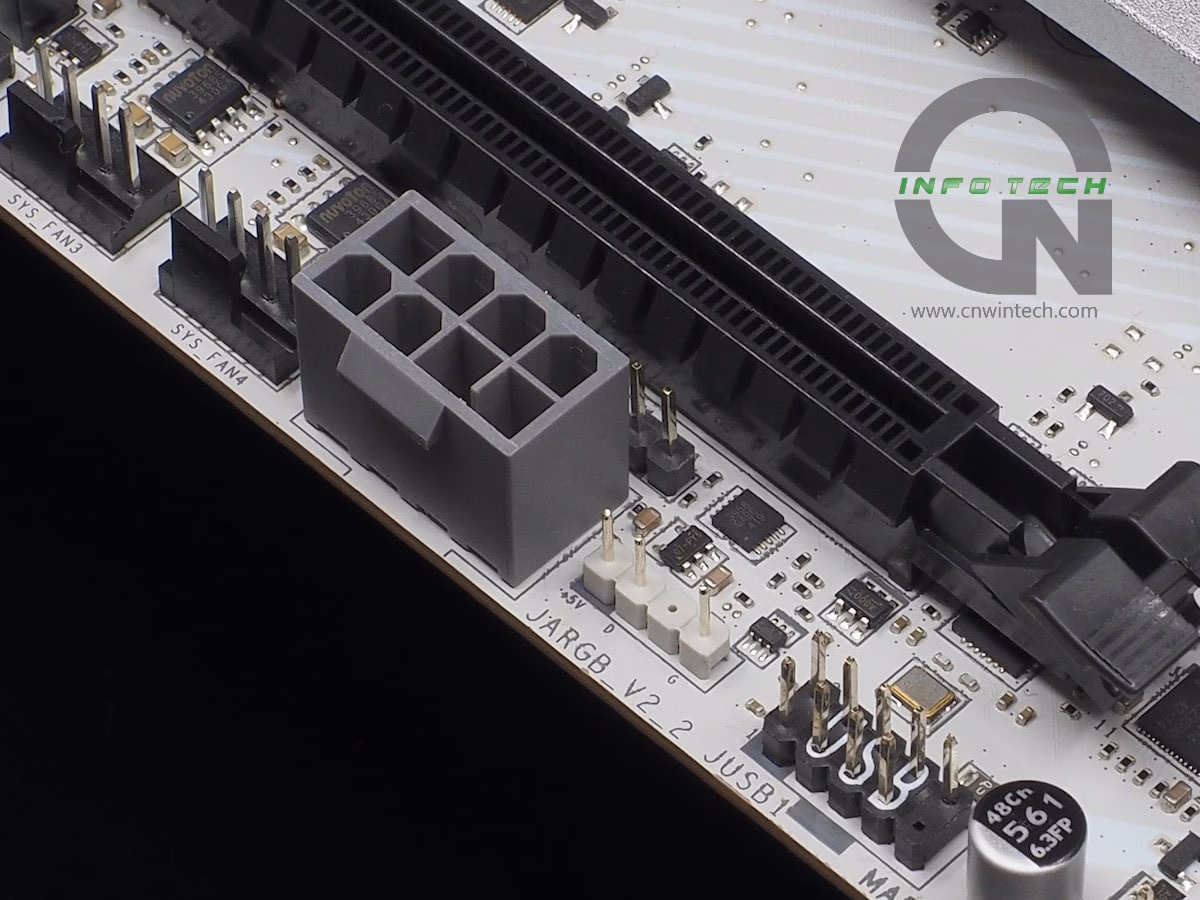

Examining the other components mounted the board, first of there is MSI original EZ CONN Additionally, there is an 8-pin PCI Express to assist with power in the PCI Express expansion slot. Furthermore, it is equipped with EZ Debug LED and EZ Digi-Debug LED, allowing for quick operation.

Construct a Gaming PC Utilizing MSI White PC Components

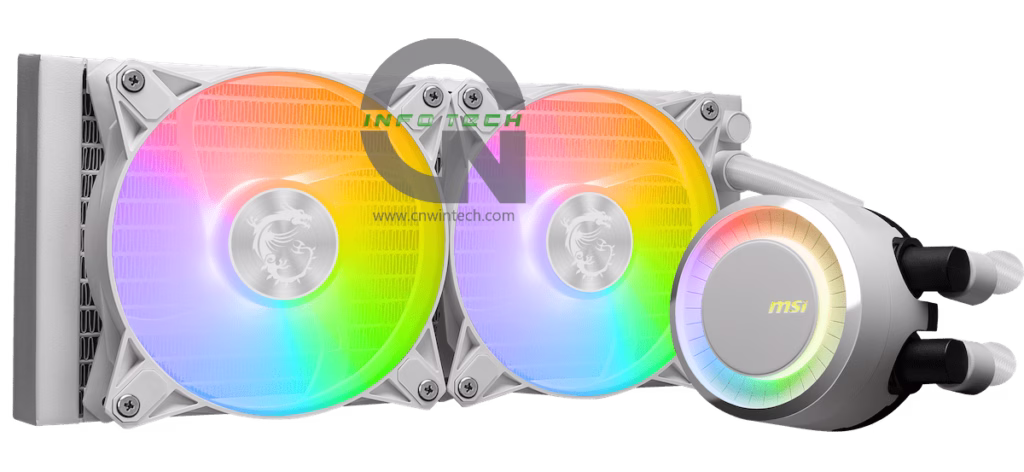

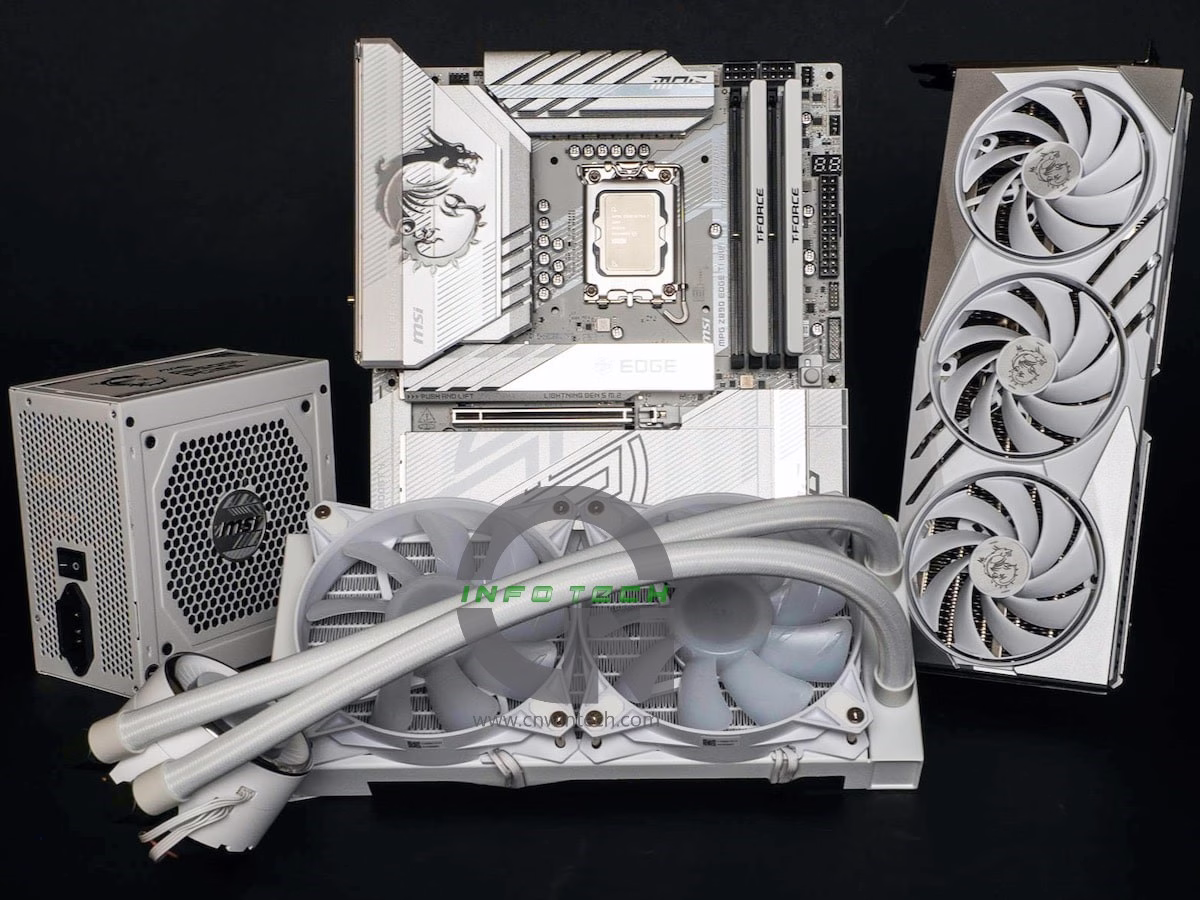

Today, MSI offers a variety of white PC components. This time, we have prepared a selection including a video card, a power supply, and a basic liquid-cooled CPU cooler.

There is also a white model available for the PC case. Therefore, if you wish to assemble a set following the MSI design concept, you should consider this option as well.

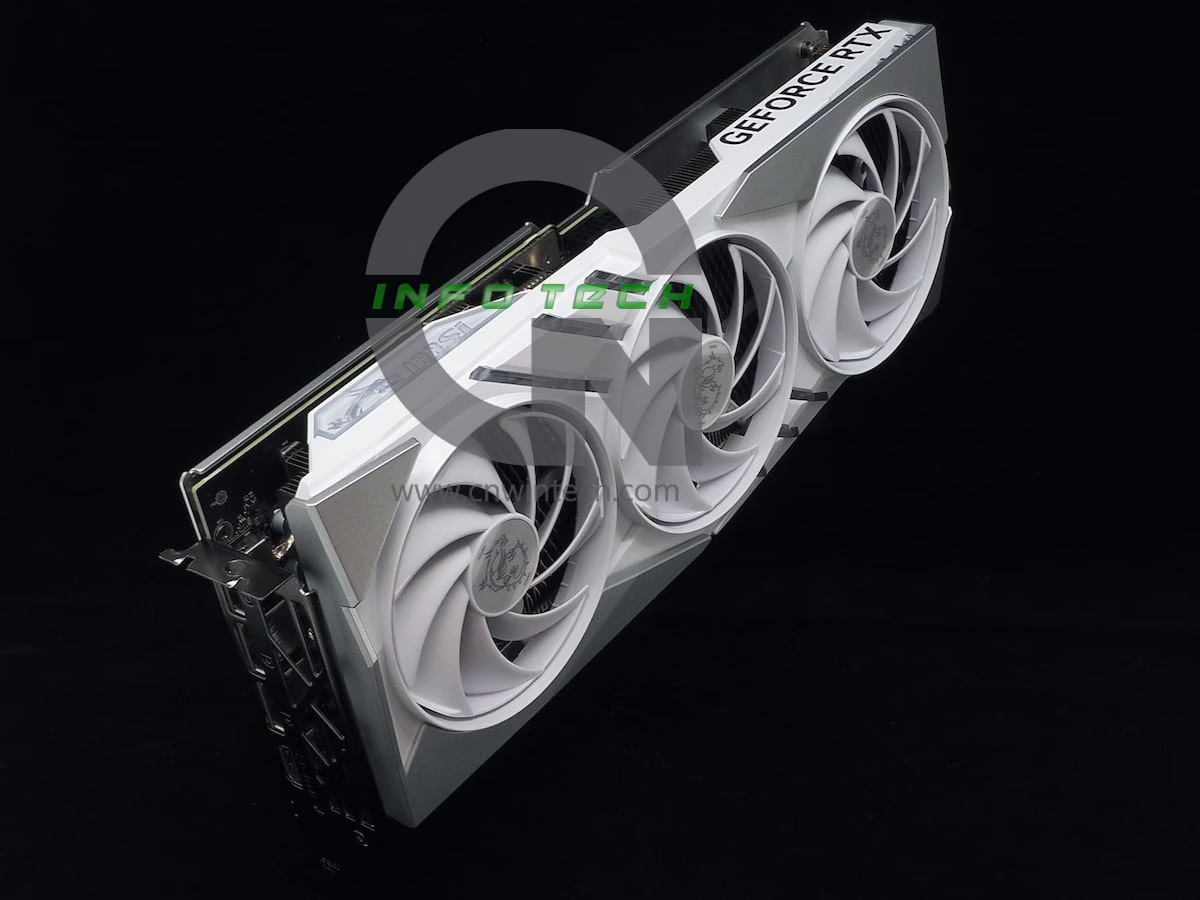

RTX 50 Series White Edition

As it is an internationally announced.

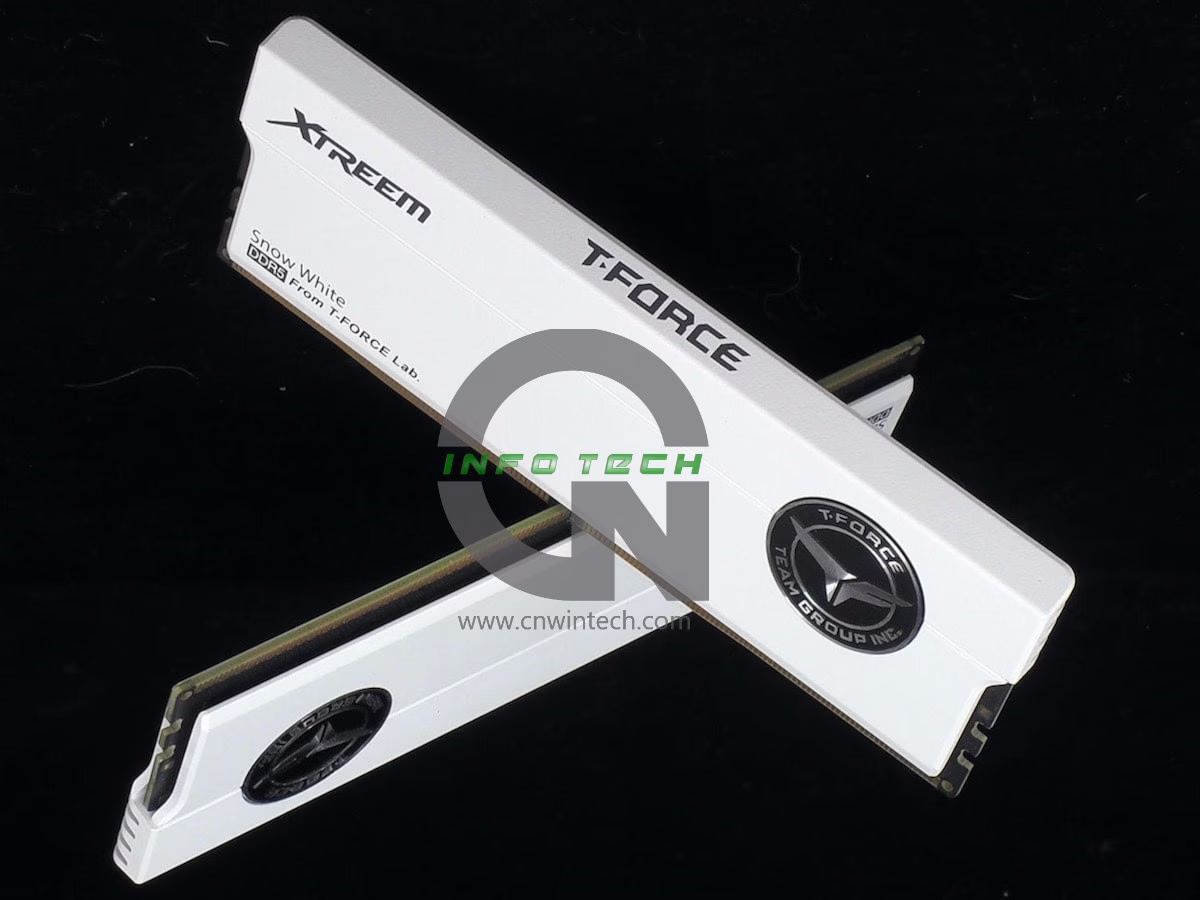

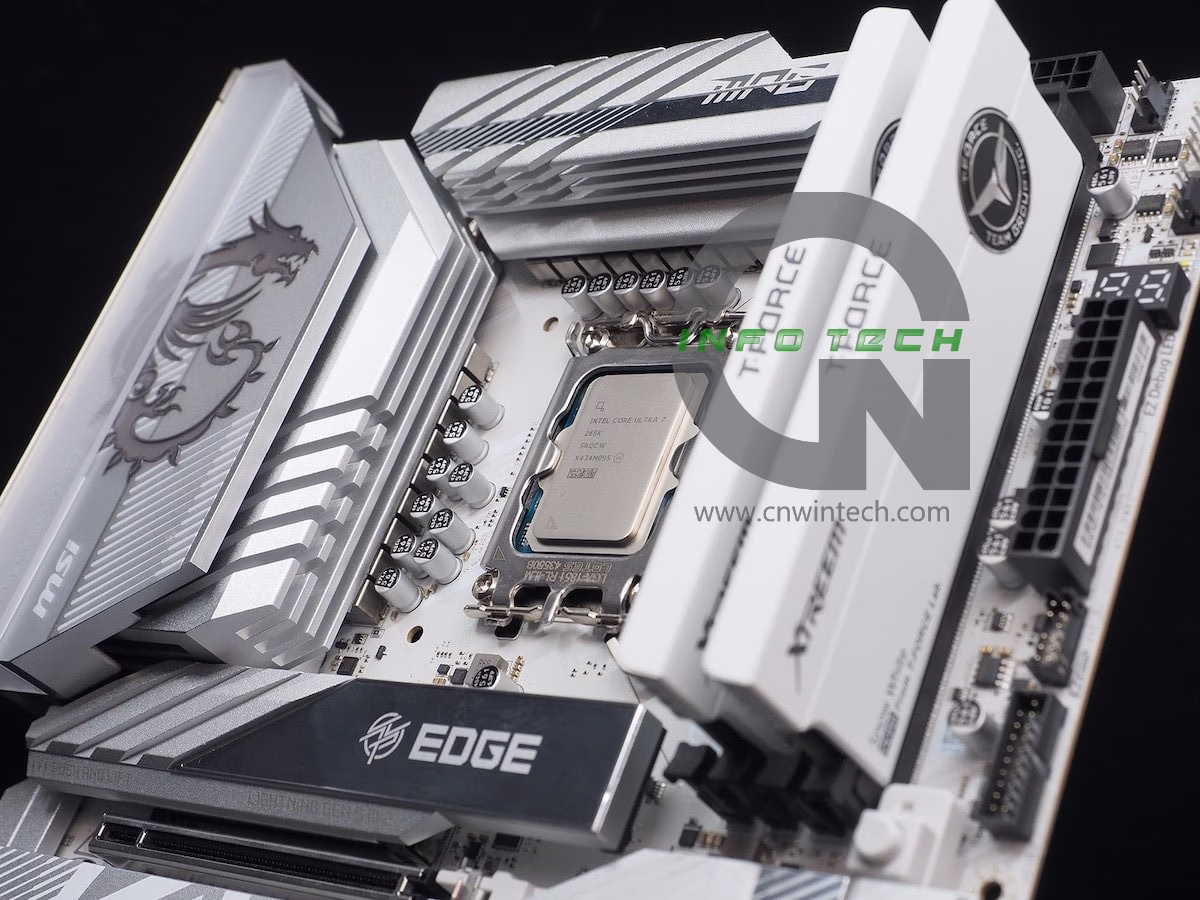

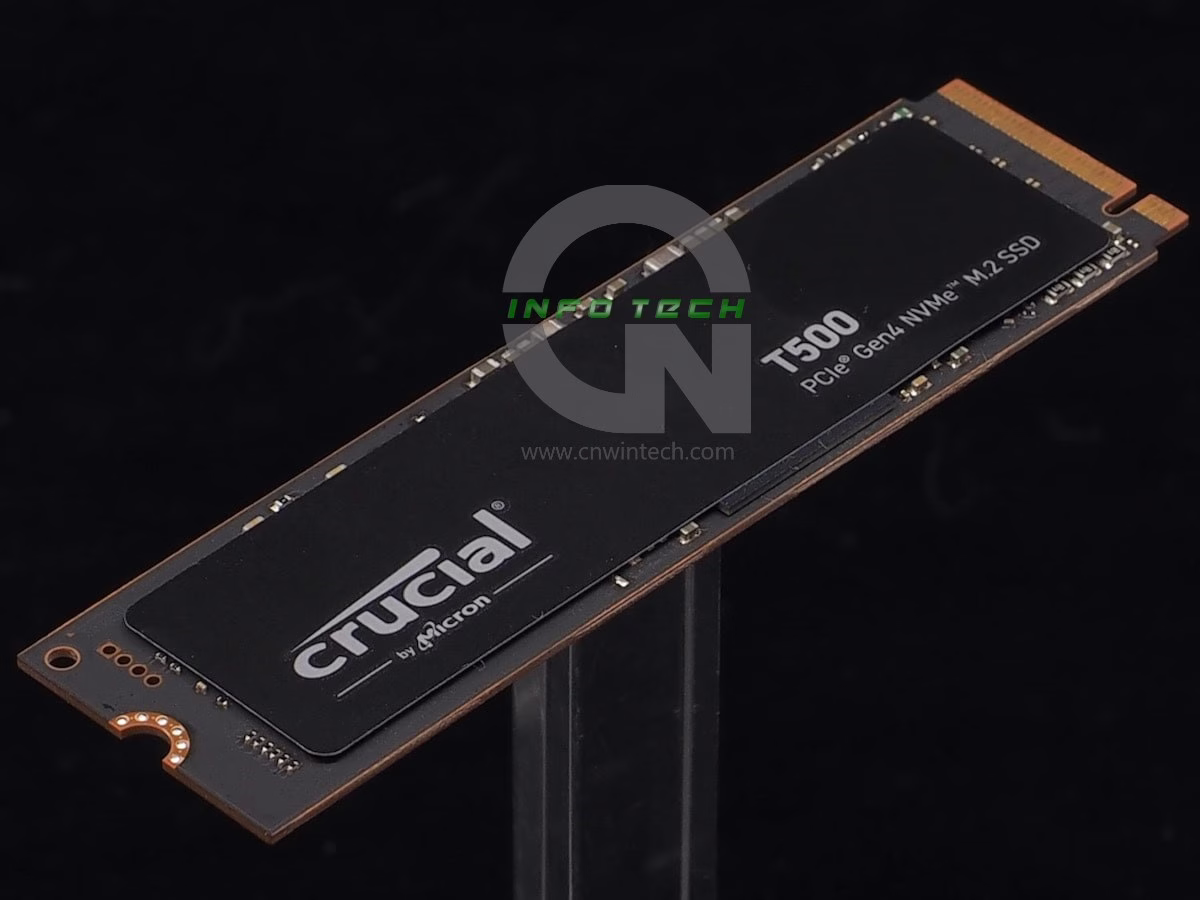

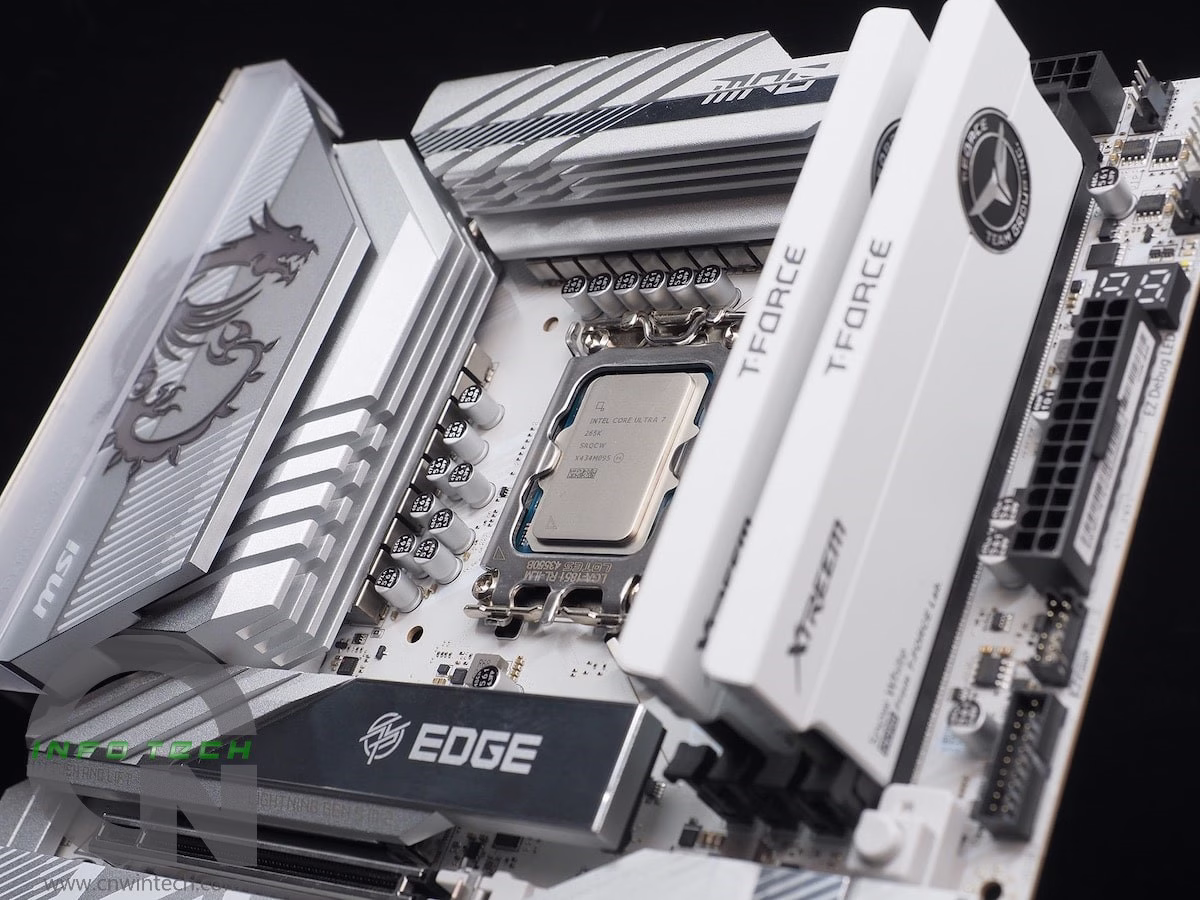

The CPU is paired with a Core Ultra 7 265K, the memory consists of TEAMGROUP “XTREEM DDR5 DESKTOP MEMORY WHITE” (DDR5-6000 16GB×2), and the SSD is paired with the Crucial “T500 Pro1000500SSD8JP” (Gen4 x4,1TB). For DDR5-6000 memory, nothing properly with XMP specified.

A PC case is essential when using it as an actual PC. MSI offers white gaming PC cases such as the “MPG GUNGNIR,” “MAG PANO,” and “MAG FORGE.” If you are interested, please check them out.

This configuration is comparable to an-middleweight gaming PC, but what level of performance can be expected? From this point forward, I will present the benchmark reference values for this configuration.

First, regarding the CINEBENCH R23 results: the score was 36,319 points for Multi Core and 2,358 points for Single Core. Although the Core Ultra 200 series no longer supports Hyper-Threading on the P-core side, it offers multi-threading performance with 8 P-cores and 12 E-cores, totalling 20 threads, resulting in a high Multi Core score. Additionally, the Single Core performance exceeds 2,000 points, ensuring brisk operation.

Examining application performance in PCMark 10 (Extended), Essentials for home use scored 11,746, Productivity for business use scored 12281, Digital Content Creation scored 18068, Gaming scored 37,756, and the Overall score was 13,814. As expected, the GeForce RTX 4070 Ti SUPER achieved a high Gaming score, and the other three scenarios also scored above 10,000. Notably, Digital Content Creation scored particularly high, making it recommended for those interested in content creation, creators, and individuals who want to learn about content creation.

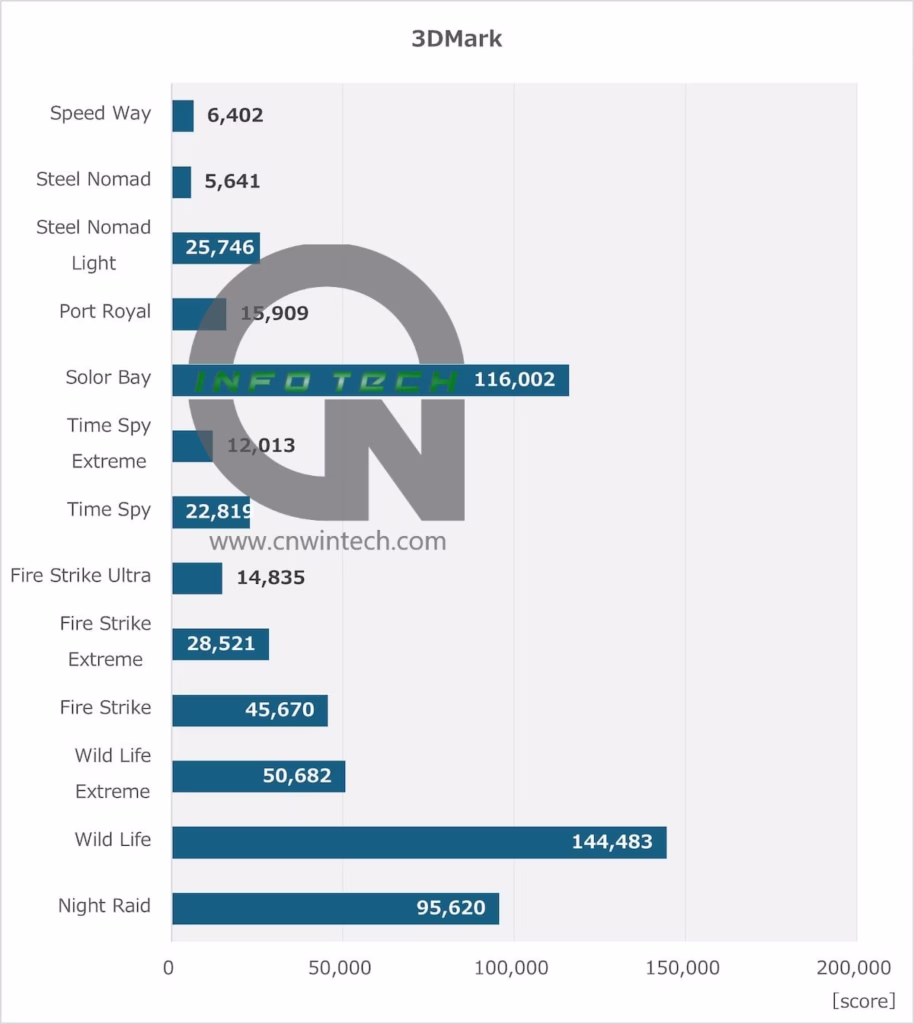

In 3DMark, Time Spy scored 22,819 and Fire Strike scored 45,670 The 4K tests, such as Time Spy Extreme and Fire Strike Ultra, also exceeded 10,000 points, indicating a level of performance that allows for gaming at WQHD to 4K with high-quality settings. Even if the RTX 50 is released in the future, it is conceivable that a GPU of this class and a video card in this price range will offer this level of performance with an additional generational update.

Cyberpunk 2077’s Ray Tracing: Ultra settings achieved frame rates of 70.59 fps at 3840×2160 resolution, 101.39 fps at 2560×1440 resolution, and 124.11 fps at 1920×1080 resolution. The frame rate at 3840×2160 resolution is sufficient, including the minimum fps, but if DLSS frame generation is enabled, it will be significantly improved to 105.59 fps.

Final Fantasy XIV: Golden Legacy was rated very comfortable in the benchmark at 3840×2160 resolution, achieving 12452 points at top quality and a frame rate of 87.24 fps. Even when the image quality setting is changed, only 1920×1080 resolution is measured, indicating a CPU performance bottleneck. However, with a frame rate exceeding 200 fps, the CPU is deemed sufficient for this configuration.

Let us Commence MSI MPG Z890 EDGE TI WIFI 2025 with a White Gaming PC!

This time, we have introduced white (white/silver) motherboard “MSI MPG Z890 EDGE TI WIFI”. The key feature this time is the increased area of the white part due to the adoption of a white substrate. Additionally, the combination with silver (including mirror processing parts) instead of just white is also commendable. The “MSI MPG Z890 EDGE TI WIFI” can be described as a white PC, particularly a product that seeks complex beauty such as unevenness shading in white, rather than pure white.

As an MPG-grade Intel Z890 motherboard, Carbon is positioned at the, while EDGE is positioned at the bottom. However, it also offers a full range of easy-to-assemble (EZ DIY) functions and high scalability. The number of PCIe lanes is particularly different from the future Intel B860 chipset models. This difference is reflected in the expansion slot and M.2 slot, but even with an equivalent number of mounts, the Intel B860 lanes have many restrictions that limit their use. The MSI MPG Z890 EDGE TI WIFI is a model designed to meet the needs of high-end users who want to build a high-end configuration like the MPG grade.
